03.04.2023 - Testing of HT Panel and Relay P3U30 Relay



Summary

• Make : Schneider
• 12KV
• 1250A
• Short Circuit : 40kA/1s
• Series : PIX

• IR TEST:  6 Nos

            Phase to Phase ( RY- YB- RB)

            Phase to Earth  ( RE -YE - BE)

• CRM TEST  : 3 Nos

            R      Y     B          25.6    28.3    28

• TIMING TEST  : 9 Nos

            Closing             53            54            54

            Open                 49            48            49

            Close-Open       41            42            41

• COIL RESISTANCE TEST : 3 Nos

            Closing Coil            64

            Tripping Coil           64

            Motor Coil               140.

COIL RESISTANCE TEST

TIMING TEST

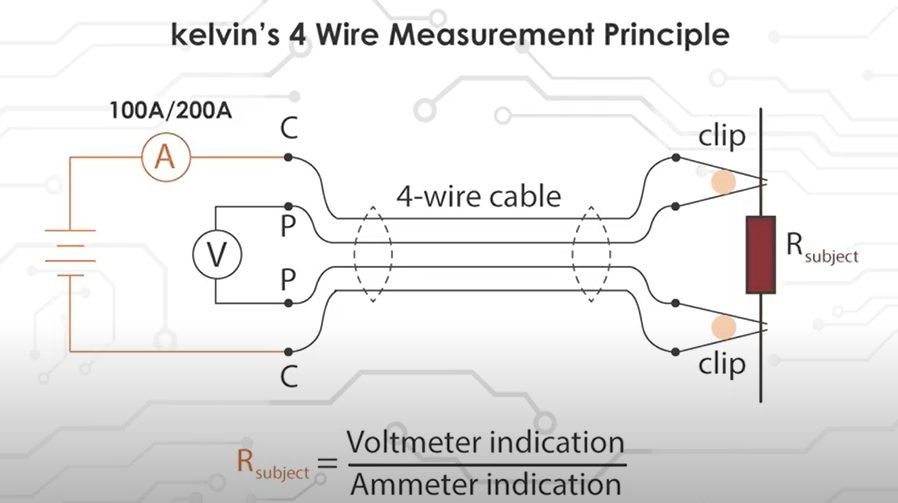

• Kelvins 4 Wire Principle is used to for CRM
• All three phases are connected simultaneously during measurement of Timing Test

• 100A or 200A DC Current is Injected in the Circuit
• Then Voltage Drop is measured between the Phase
• Then with Ohms Law, the Resistance is Calculated
• Kelvins 4 Wire Principle is used to for CRM

   A.    Closing Coil

• Bottom Terminal 5,6
• Spring Should be charged to get value
• 64.8Ohm

   B.    Tripping Coil

• Bottom terminal 3,4
• Breaker Should be ON to get value
• 64.2 Ohm

  C.    Motor Resistance

• Bottom terminal 1,2
• Breaker should be OFF
• Spring Should be discharged
• 140 Ohm

   D.    Extras :

• Link : CRM
• Video :
